Product Overview


This equipment series covers heavy-duty FRP Tank Winding Machines and FRP Pultrusion Lines, engineered for industrial composite fabricators producing corrosion-resistant tanks, pressure vessels, and continuous structural profiles.



FRP manufacturing equipment is used to produce fiber-reinforced plastic (FRP) products for industrial, infrastructure, and other composite applications. The appropriate equipment depends on the product design, reinforcement materials, resin system, production requirements, and required finished-product dimensions.



FRP Tank Winding Machines: Used in filament-winding production processes for suitable FRP tanks, pressure vessels, and cylindrical composite products.



FRP Pultrusion Lines: Used in continuous pultrusion processes to manufacture FRP profiles with a consistent cross-sectional shape.




  • FRP Tank Winding Machine
    This frp tank winding machine ensures precise, stable tank production. It cuts labor and boosts efficiency for various industrial uses. We provide machines with standard and custom solutions.
  • FRP Vertical Tank Filament Winding Machine
    Our FRP Vertical Tank Filament Winding Machine is specifically designed for vertical tank production and features a sturdy vertical structure.. With its high level of automation and precise digital
  • Grp Pipe Winding Machine
    This grp pipe winding machine is designed to combine three key processes in one: winding, resin impregnation, and curing. It’s fully automatic, so you don’t need much manual work. That means
  • FRP Molded Grating Machine
    This frp molded grating machine designed for high-efficiency production of corrosion-resistant, lightweight grating products. With full automation and customizable specifications. . It ensures
  • FRP Rebar Machine
    It is built specifically for continuous, automated production of fiberglass rebar. . As a complete frp rebar machine, it combines multiple processes to deliver consistent quality, low labor demand,
  • Septic Tank Fiber Winding Equipment
    Our septic tank fiber winding equipment, which forms the tank body and reinforcing ribs in one cycle. It reduces manual work and delivers strong, uniform tanks for wastewater treatment.
  • FRP Pipe Braiding and Pultrusion Equipment
    Here is our FRP pipe braiding and pultrusion equipment , which integrates braiding and pultrusion in one line. It delivers high output, stable quality, and low labor needs for composite pipe and
  • FRP Pultrusion Machine
    our FRP pultrusion machine, designed for continuous production of fiberglass profiles. This complete fiberglass pultrusion equipment system combines impregnation, forming, curing, and cutting in one
  • Four Column Hydraulic Press
    Our four column hydraulic press, built for heavy-duty compression molding of FRP parts. This four column hydraulic press machine, it delivers stable pressure, accurate guiding, and consistent output

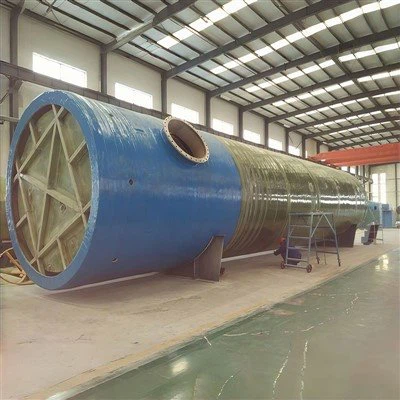

  • Integrated Pump Station Equipment
    Our integrated pump station equipment, prefabricated and factory-tested for direct site installation. This integrated pumping station equipment solution, it cuts construction time and reduces on-site
  • Fiberglass Cnc Router Machine
    Our fiberglass cnc router machine, purpose-built for engraving FRP sheets and flat panels. This frp panel cnc engraving machine, it delivers clean patterns, sharp edges, and reliable performance in

Key Features

Process-Oriented Equipment Configuration

Equipment configuration is evaluated according to the selected manufacturing process, product dimensions, reinforcement materials, resin system, and production targets.

Precision Motion Control

Multi-axis CNC control architectures govern carriage travel, mandrel rotation, and cross-feed axes, enabling synchronized winding patterns (helical, hoop, and polar).



Thermal and Tension Management

Integrated closed-loop tension systems and multi-zone heating configurations ensure consistent fiber placement and reliable resin curing.

Production Flexibility

Compatible with various tooling options, winding patterns, dies, and auxiliary material-handling systems tailored to specific factory layouts.



Equipment Types and Technical Specifications


FRP Tank Winding Machine

Designed for filament-winding processes to manufacture composite tanks and cylindrical products. Key selection parameters include:
Required tank diameter and length
Product design and winding pattern
Reinforcement material and resin system
Mandrel or tooling configuration and winding control requirements

FRP Pultrusion Line

Designed to manufacture continuous FRP profiles by pulling reinforcing fibers through an impregnation and thermal forming process. Key selection parameters include:
Profile cross-sectional dimensions and drawings
Reinforcement type and resin system
Die design and heating zone requirements
Pulling force, production speed, and cutting length

Reference Specification Baseline Table

Technical Parameter

FRP Tank Winding Machine (Typical Baseline)

FRP Pultrusion Line (Typical Baseline)

Primary Process

Filament winding

Continuous pultrusion

Product Scope

Storage tanks, vessels, cylindrical shapes

Structural profiles, rods, channels, angles

Control System

Multi-axis CNC architecture

PLC with HMI touch screen integration

Customization

Tailored to product geometry and dimensions

Tailored to profile cross-section and output rate

Configuration Basis

Evaluated via technical drawing review

Evaluated via profile design and resin specs



Manufacturing Capabilities

Selecting manufacturing equipment requires evaluating mechanical design, component selection, control configuration, tooling requirements, and integration with the production process:



FRP Pultrusion Machine

Mechanical Structure

Heavy-duty machine bed designs appropriate to the intended industrial operating conditions.

FRP Molded Grating Machine

Motion and Drive Systems

Drive configurations matched to the selected process requirements.



FRP Rebar Machine

Material Compatibility

Components engineered to handle specified reinforcement fibers, resin systems, and process catalysts.

Grp Pipe Winding Machine

Auxiliary Equipment

Integration with supporting material-feeding, heating, cutting, and handling systems where applicable.



Quality Control

Equipment quality is evaluated against documented manufacturing requirements, inspection procedures, and agreed technical specifications. Depending on the machine model and project scope, the acceptance process may include:

Verification of key components against approved drawings and specifications

01

Inspection of mechanical assembly and alignment

02

Checks of electrical systems and control functions

03

Functional testing of machine movements and operating sequences

04

Review of agreed Factory Acceptance Test (FAT) requirements, if included in the contract

05



Applications


FRP Tank Winding Applications

FRP storage tanks and industrial vessels
Cylindrical composite products and process containers
Other products compatible with the specified filament-winding process

FRP Pultrusion Applications

FRP structural profiles and construction beams
Composite rods, bars, and utility poles
Channels, angles, cable trays, and custom profile shapes





Frequently Asked Questions



Q: What is the difference between an FRP Tank Winding Machine and an FRP Pultrusion Line?

A: A tank winding machine forms composite products through a filament-winding process, while a pultrusion line produces continuous profiles through a pulling and thermal forming process. The choice depends entirely on your product geometry and manufacturing method.

Q: How do I choose the right FRP manufacturing equipment?

A: Start by providing your product drawings, dimensions, material requirements, target production capacity, and intended manufacturing process. These details determine the appropriate machine configuration and auxiliary setup.

Q: Can the equipment be customized for different products?

A: Yes. Equipment configuration can be customized according to product designs, tooling requirements, production targets, and factory utility conditions. Feasibility is confirmed through a technical review.

Q: What information should I provide when requesting a quotation?

A: Please provide as much of the following as possible:
Product drawings or sample photographs
Product dimensions and cross-sectional details
Reinforcement and resin specifications
Required production capacity and desired automation level
Available factory space and utility conditions

Q: What information should I confirm before purchasing?

A: Confirm the machine's working range, configuration, tooling scope, production capacity, utility requirements, installation arrangements, operator training, warranty terms, and acceptance criteria in written form.

Q: Can you provide installation and technical support?

A: Installation, commissioning, operator training, spare parts, and after-sales support can be arranged according to the selected model, project scope, and supply agreement. Please specify your location and support requirements during inquiry.

We're well-known as one of the leading FRP process equipment manufacturers and suppliers in China, featured by quality products and good service. Please rest assured to buy customized FRP process equipment at competitive price from our factory. Contact us for more details.
