Product Description

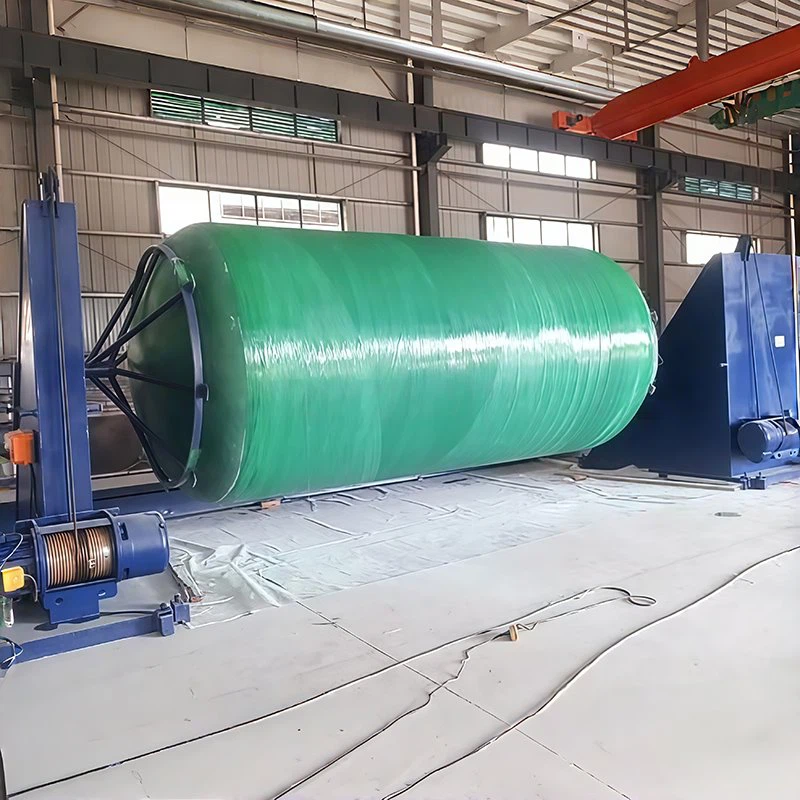

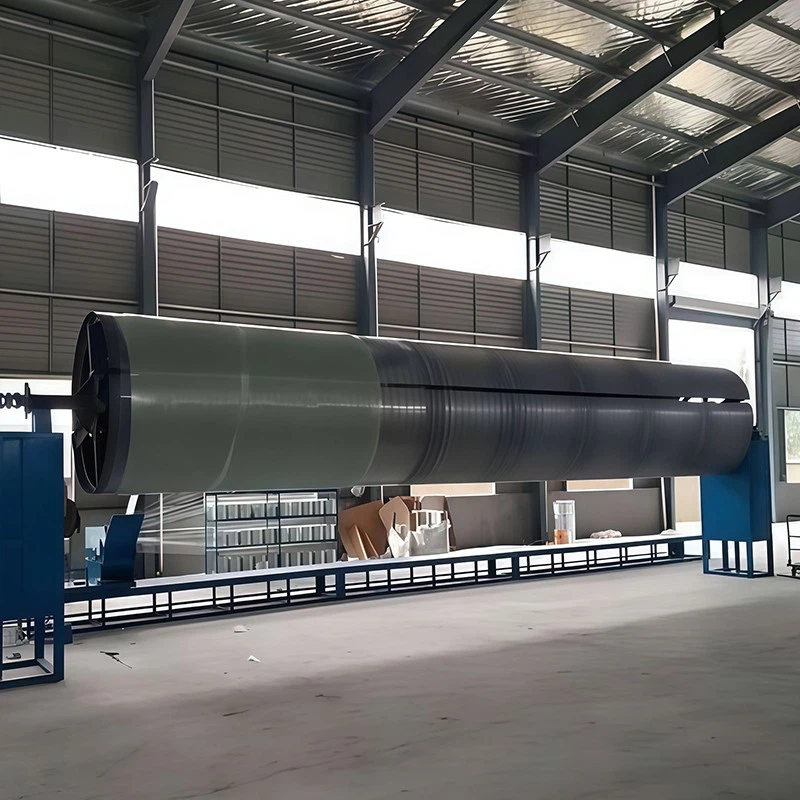

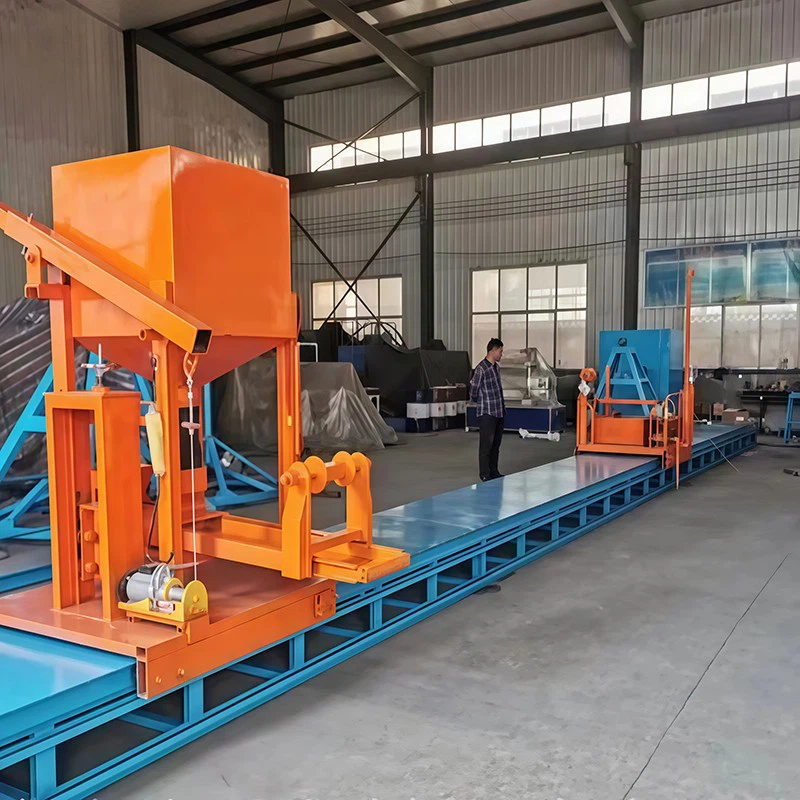

Our frp tank winding machine features a precision winding mechanism with adjustable winding angles from 15° to 90° and speeds from 0.1 to 3 m/min. The entire process-from pay-off and tension control to simultaneous impregnation and curing-guarantees reliable molding quality and tight sealing.
Product Parameters
|
Parameter |
Specification |
|
Winding Angle |
15-90° adjustable |
|
Winding Speed |
0.1-3 m/min |
|
Applicable Tank Diameter |
0.5-10 m |
|
Applicable Tank Height |
1-15 m |
|
Motor Power |
11-45 KW |
|
Curing Temperature |
80-180℃ |
|
Cutting Accuracy |
±0.5 mm |
|
Machine Weight |
5000-15000 kg |
Product Advantages
Integrates winding and molding with high automation, greatly reducing labor costs and improving efficiency.
01
Features high winding precision, even fiber arrangement and controllable tension, ensuring uniform wall thickness and qualified strength.
02
Allows flexible adjustment of winding angle and speed to fit tanks of different sizes and volumes.
03
Runs smoothly with low noise, easy operation and simple maintenance, ideal for large-scale workshop production.
04
Main Applications
The machine is widely used in the frp composites industry for producing frp tanks and vessels. It serves critical storage and transport needs in chemical, environmental protection, water conservancy, petroleum, and food industries.
Frequently Asked Questions (FAQ)
Q: How does the machine ensure winding quality?
The frp tank winding machine utilizes precision winding mechanisms with real-time tension control and uniform fiber placement. It undergoes multiple no-load and load tests before delivery to guarantee accuracy and reliability.
Q: Can we request samples for testing?
Samples of some standard products are available for testing. Please contact our sales team for details on sample types, testing purposes and shipping procedures.
Q: What are the lead times for standard and customized products?
Standard products ship in 3–7 working days after order confirmation. Customized orders normally take 7–15 working days; lead times for complex non-standard items can be adjusted by negotiation.
