Product Overview

FRP

(Fiber-Reinforced Plastic) bolts and grating panels are composite components engineered for industrial structures where corrosion resistance, low component weight, and electrical insulation are critical design considerations.

FRP Bolts

Composite fasteners designed for structural connections, equipment assemblies, and installations exposed to corrosive environments.

FRP Grating Sheets

Open-grid panels manufactured by molding or pultrusion, deployed for walkways, platforms, trench covers, and access surfaces.




  • FRP Anchor Bolt
    Lightweight, High-Strength, and Corrosion-ResistantInsulating and Aging-ResistantEasy Installation and Strong Anchorage
  • FRP Bolt
    Lightweight yet high-strength; corrosion- and aging-resistantNon-conductive and non-magnetic; insulating and rust-proofEasy to install; can be cut and customized
  • FRP Sound Barrier
    Excellent sound insulation performanceCorrosion and UV resistantFire-retardant and durable
  • FRP Anti-Glare Net
    Lightweight yet high-strength; corrosion- and UV-resistantAnti-glare and breathable; non-conductive and rust-proofEasy to install; customizable mesh size

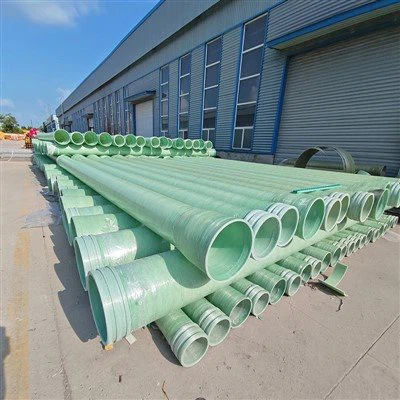

  • FRP Pipe Line
    Our frp pipe line are manufactured by mechanical winding molding process, all products pass water pressure and leakage tests before delivery. The product covers a full range of specifications with
  • FRP Grating Sheet
    Our frp grating sheets are manufactured by pultrusion, molding or hand lay-up process with surface anti-skid treatment, and the product structure is uniform without bubbles or cracks. It supports
  • FRP Sewage Tank Cover
    Our frp sewage tank covers are made by hand lay-up, molding or pultrusion splicing processes, with anti-corrosion surface coating and sealant for splicing parts. The covers support size customization
  • Fibrocast FRP Covers
    Our fibrocast frp covers are made by molding process with anti-slip and wear-resistant surface treatment and smooth edges, perfectly fitting well opening sizes. All products pass load-bearing and
  • FRP Cable Trench Cover
    Our frp cable trench covers are made by molding process. We do anti-slip patterns on the surface and cut edges precisely, so they fit cable trenches well. All covers are tested for load-bearing,

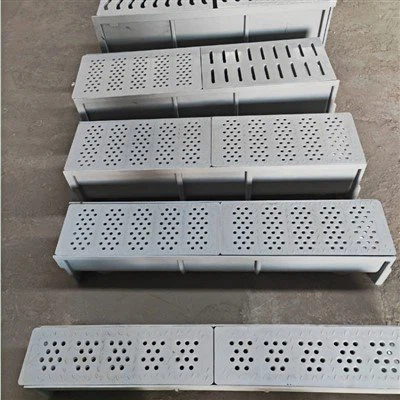

  • FRP Trench Drain
    Our frp trench drains are made by molding or pultrusion, products pass water pressure and drainage flow tests before delivery. We support full customization, fit various drainage scenarios, and are a
  • FRP Cable Support
    Our frp cable supports are pass insulation, load-bearing and flame retardancy tests before delivery. They support on-site direct installation and size customization, and are a practical replacement
  • FRP Cable Rack
    Our frp cable tray is crafted with mature techniques, with tailor-made accessories for seamless fitting.Each tray undergoes strict insulation and load-bearing tests, offers custom sizes/shapes, and
First 12 Last

Key Features



Corrosion-Resistant Material Options

Suitable FRP resin systems selected for specific chemical environments.

01

Low Component Weight

Reduces dead load compared with metallic alternatives of similar dimensions.

02

Electrical and Magnetic Properties

Offers electrical insulation and non-magnetic characteristics, eliminating eddy currents in sensitive electrical installations.

03

Application-Specific Configurations

Bolt dimensions, thread forms, grating thicknesses, panel sizes, and surface profiles tailored to project requirements.

04

Flexible Fabrication Options

Molding, pultrusion, machining, and panel cutting utilized for customized product workflows.

05



Technical Specifications



FRP Bolt Specifications



Technical Parameter

Specification Options

Reinforcement

E-glass fiber (at least 65 percent glass content by weight)

Resin System

Vinyl ester, isophthalic polyester, or alternative systems

Nominal Diameter

M10, M12, M16, M20, M24, M27, and M32 (custom lengths available)

Length

Standard and custom lengths up to 3000 mm

Thread Type

Metric coarse thread 6g / UNC equivalent

Tensile Performance

Longitudinal tensile strength 550 to 650 MPa

Shear Performance

Shear strength 150 to 200 MPa

Installation Requirements

Approved tightening torque limits and washer arrangements

Chemical Compatibility

Resistant to acids, alkalis, and saline moisture



FRP Grating Sheet Specifications



Technical Parameter

Specification Options

Manufacturing Process

Open-mold wet layup or pultrusion

Panel Dimensions

Standard sizes: 1220 x 3660 mm, 1000 x 3000 mm (custom cuts available)

Panel Thickness (Depth)

25 mm, 30 mm, 38 mm, 50 mm

Mesh Configuration

38 x 38 mm (Square), 25 x 100 mm (Rectangular)

Surface Profile

Gritted anti-slip (OSHA compliant), concave meniscus, smooth

Resin System

Vinyl Ester or Isophthalic Polyester based on chemical exposure

Load Capacity

High load-bearing performance per industrial design standards

Fire Performance

Conforms to ASTM E84 Flame Spread Class 1 (less than 25 index)

Outdoor Exposure

Integrated UV inhibitors and synthetic surface veil





Manufacturing Capabilities



Pultrusion Lines: 12 automated machines producing continuous profiles, structural shapes, and threaded rods with uniform fiber alignment.



Hydraulic Compression Molding: Multi-ton presses dedicated to bolt head consolidation and molded structural elements for void-free matrix integration.



Open-Mold Grating Tables: Flat-bed production lines with controlled resin dispensing systems ensuring uniform glass-to-resin ratios.



Thermal Post-Curing Ovens: Automated curing chambers operating at 120 degrees Celsius for 4 hours to maximize cross-linking density and Barcol hardness.



CNC Machining Centers: Multi-axis routers and precision thread-cutting machinery for custom brackets, non-standard bolt lengths, and panel cutouts.

FRP Grating Sheet



Quality Control



Raw Material Verification: Incoming glass roving and liquid resin batches undergo viscosity, gel time, and tensile tests prior to release.



Hardness Testing: Monitored per ASTM D2583 on every production lot to verify complete resin cure.



Proof Load Testing: Random destructive and non-destructive axial pull tests on FRP bolts to confirm minimum breaking load thresholds.



Deflection Testing: Sample testing of grating panels under concentrated point loads to ensure compliance with allowable deflection limits.



Batch Traceability: Batch numbers on bulk packaging linked directly to raw material mill certificates and internal quality inspection logs.

FRP Pipe Line



Applications


FRP Bolts

Chemical Processing Facilities: Acid storage tank hold-down anchors and structural fasteners.
Wastewater Treatment Plants: Equipment and structural connections exposed to humid or chemically aggressive conditions.
Marine Environments: Splash-zone structural fastening exposed to saline moisture.
Electrical Facilities: Non-magnetic and electrically insulating structural connections.

FRP Grating Sheets

Wastewater Treatment: Walkways, access platforms, and trench covers around treatment basins.
Chemical Processing Plants: Access flooring and drainage trench covers in corrosive process areas.
Marine and Offshore Facilities: Corrosive-resistant decking walkways and platform flooring.
Industrial Electrical Facilities: Non-conductive switchyard flooring and insulation platforms.







Frequently Asked Questions



Q: What is the maximum continuous operating temperature for Vinyl Ester FRP bolts and grating?

A: Vinyl Ester resin matrices maintain structural integrity up to 120 degrees Celsius (248 degrees Fahrenheit) in continuous exposure environments. For intermittent exposure up to 140 degrees Celsius, consult our engineering team for chemical-thermal interaction data.

Q: Can FRP bolts be torqued to the same specifications as stainless steel bolts?

A: No. FRP bolts require lower torque values to prevent localized crushing of the composite matrix. Standard installation guidelines specify torque limits set to 60 to 70 percent of equivalent steel fasteners, utilizing flat washers to distribute clamping forces evenly.

Q: Are FRP grating panels suitable for outdoor use?

A: Yes. All outdoor-grade grating sheets incorporate UV inhibitors and a synthetic surface veil (resin-rich layer) to prevent resin degradation, matrix chalking, and fiber blooming over extended exposure to direct sunlight.

Q: Can FRP bolts and grating resist acids and sodium hypochlorite?

A: Yes. Our Vinyl Ester formulations withstand aggressive media including 30 percent sulfuric acid, 10 percent hydrochloric acid, and concentrated sodium hypochlorite at ambient temperatures.

Q: Can you supply custom bolt dimensions and cut-to-size grating panels?

A: Yes. Our facility executes precision CNC cutting for grating panels based on CAD files (DXF or DWG) and supplies custom-length threaded rods and molded bolt assemblies per project specifications.

Q: What quality documents are available for export orders?

A: Each shipment includes Certificates of Analysis for raw materials, lot-specific hardness test logs, test compliance summaries, and complete packing lists formatted for customs clearance.
